ceramicsJune 18, 2026

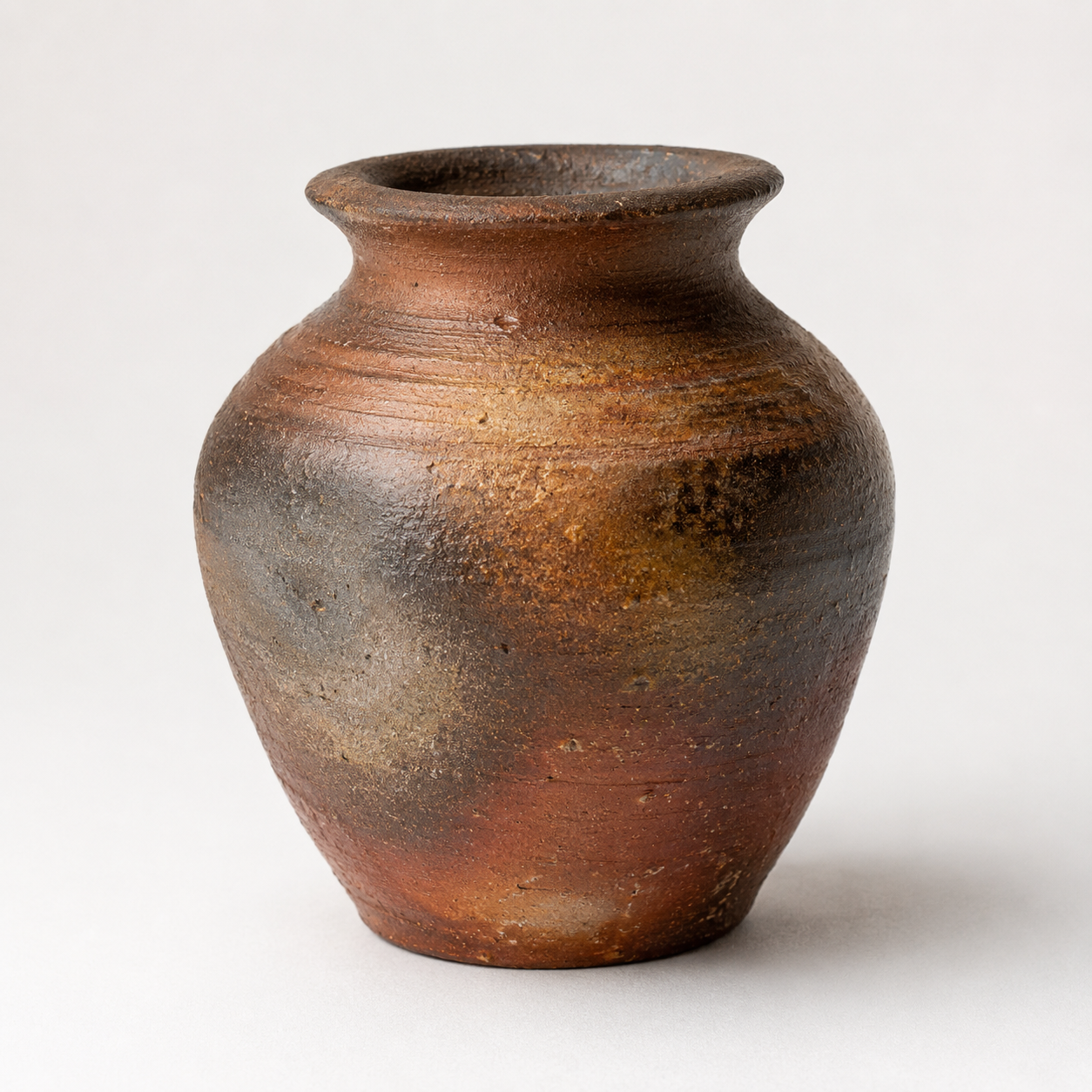

Bizen-yaki

Bizen-yaki (備前焼) is a ceramics tradition produced in the area around Bizen City, Okayama Prefecture, with roots extending to Sue pottery of the 6th century. The ware has been designated a Traditional Craft Product by the Minister of Economy, Trade and Industry since November 1, 1982. It is counted as one of Japan's Six Ancient Kilns (Nihon Rokkoyo) and was further recognized as part of Japan Heritage on April 29, 2017.

History

The origins of Bizen ware are traceable to Sue ware kiln sites scattered across the southern part of Bizen City, Setouchi City, and Okayama City — a cluster collectively known as the Oku Ancient Kiln Site Group. The earliest of these, the Kinabeyama kiln site in Osafune-cho, Setouchi City, dates from the mid-6th century. In the latter half of the 7th century to the early 8th century, kilns were established around the Kanpū Ancient Kiln Site Group in Ushimado-cho, Setouchi City, which has since been designated a national historic site. By the 8th century, kiln construction had begun in Sayama, Bizen City, and by the 12th century, production had shifted in earnest to the Imbe district, where independent development followed.

During the early Kamakura period, reduction-fired stoneware was produced, while the late Kamakura period saw the emergence of the reddish-brown, oxidation-fired ceramics characteristic of Bizen ware today. The main products of the Kamakura period were practical items such as water jars and mortars, which were praised for their durability. Works from this era are referred to as Ko-Bizen (Old Bizen) and are highly prized. A representative Ko-Bizen work, the Yotsumimi-tsubo jar, bears an inscription of 1444 (Bun'an 1st year) and is held at Senkoji Temple in Akaiwa City. Bizen ware was considered one of the Six Ancient Kilns by the scholar Koyama Fujio.

From the Muromachi period through the Momoyama period — the era of Bizen ware's peak — the ware gained popularity as tea ceramics alongside the development of the Japanese tea ceremony. Its rustic quality made it particularly favored for this purpose. A cylindrical flower vase bearing an inscription of Koji 3rd year (1557) survives as an Important Cultural Property in private ownership. During the Edo period, the Ikeda lords of the Okayama domain granted special privileges to kiln-operating families, including the Kimura, Mori, Kaneshige, Oae, Tongu, and Terami. Despite this patronage, Bizen ware declined in the Edo period due to the waning of the tea ceremony and the rise of inexpensive mass-produced porcelain.

After modernization began during the Meiji era of the 19th century, Bizen ware nearly disappeared along with many other traditional crafts. In the 1930s during the early Shōwa era, Kaneshige Toyo (1896–1967) led a revival by returning to Momoyama-style ceramics, raising the artistic quality of the ware and restoring its popularity. Kaneshige Toyo was subsequently designated a holder of Important Intangible Cultural Property for Bizen-yaki — a distinction also known as Living National Treasure. During World War II, ceramic hand grenades using Bizen ware were prototyped due to metal shortages, though they were never deployed in actual combat. The Bizen-yaki Festival is held annually on the third Saturday and Sunday of October around Imbe Station.

Techniques & Production Process

Bizen ware is fired without any glaze, a defining characteristic directly tied to its raw materials. The clay used, known as hiyose (田土), is dug from the bottom of rice paddies — sometimes more than 5 meters deep — and mixed with mountain soil and black soil containing high iron content. This Imbe clay is sticky and fine, with a high iron content and traditionally much organic matter that makes it unreceptive to glazing. Even if glaze were applied, it would peel off during firing due to the clay's high shrinkage. The clay also has relatively low fire resistance, requiring gradual firing to prevent cracking. Living National Treasure Kaneshige Toyo is said to have used clay that had been aged for ten years.

Most Bizen ware vessels are formed on a potter's wheel. Firing takes place in traditional climbing kilns called noborigama or in a tunnel kiln called an anagama, using red pine as firewood, whose resin content helps generate the high temperatures required. Firings occur only once or twice a year, with each firing period lasting 10 to 14 days. The potter adds firewood directly into the firebox every 20 minutes, day and night. The temperature begins at approximately 600 degrees Celsius and rises to a peak of 1,200 to 1,300 degrees Celsius by the eighth day. Six days after the firing ends, the flames are extinguished and the vessels are removed.

The surface character of Bizen ware depends entirely on yohen, or kiln effects, produced by the interaction of fire, ash, and atmospheric conditions within the kiln. Several distinct kiln effects are recognized. The goma (sesame) effect is created when ash from pine wood is blown onto a piece during firing and vitrifies at high heat, forming yellow speckled patterns. The sangiri effect occurs when a work is covered in ash from burnt pine wood, restricting air circulation and causing it to be smoked. The hidasuki (scarlet cord) effect originates from wrapping straw around works when stacking them in the kiln to prevent adhesion; firing in a saggar away from direct flame produces a light brown body with scarlet marks where the straw was placed. The botamochi (rice cake) effect is achieved by placing rounded clay or small works on top of a piece during firing, creating uneven firing and white spots. Ao-Bizen (blue Bizen) results from placing a piece in a section of the kiln where oxygen does not reach, inducing reduction and turning the piece a vivid blue-gray; this effect is very rare because suitable reduced zones within the kiln are few. The first-generation Fujiwara Rakuzan devised a method called shio-ao-yaki (salt blue firing), using salt to produce a distinctive Ao-Bizen. Kuro-Bizen (black Bizen) is made using the Imbe-de technique, in which iron-rich clay is applied to the surface after forming and melts like a glaze during firing. Shiro-Bizen (white Bizen) employs clay with low iron content fired at high temperatures to produce a white color, a technique first developed in the early 18th century. The final step of the firing process involves throwing charcoal directly into the kiln to reduce oxygen and create dark patterns on the vessels.

How to Identify Bizen-yaki

Bizen ware is distinguished by its characteristic earthen-like, reddish-brown color and the complete absence of applied glaze, though surfaces may carry traces of molten ash that superficially resemble glaze. The hardness of the finished ware is significant, resulting from high-temperature firing. Surface decoration arises exclusively from kiln effects: goma markings appear as yellow speckles where pine ash has vitrified; hidasuki produces scarlet linear marks from straw wrapping; botamochi creates white spots from obstructed firing; sangiri results in a smoked surface; and Ao-Bizen presents a blue-gray coloration from reduction firing. Ware from the earliest phase of Bizen production is categorized as Ko-Bizen (古備前派, Ko-Bizen-ha) and is distinguished from later work by scholars and collectors. The kilns of the Imbe district are also characterized by their square brick chimneys, visible throughout the area.

The Craft Today

At the beginning of the 21st century, Bizen ware was produced in approximately 300 operating kilns. The craft has been recognized at the national level through multiple designations: it was designated a Traditional Craft Product by the Minister of Economy, Trade and Industry on November 1, 1982, and was included in Japan Heritage as one of the Six Ancient Kilns on April 29, 2017. Five practitioners — Kaneshige Toyo, Fujiwara Kei, Yamamoto Toshu, Fujiwara Yu, and Isezaki Jun — have been designated holders of Important Intangible Cultural Property for Bizen-yaki. At the prefectural level, Kaneshige Michiaki, Mori Togaku, Isezaki Yozan, and Fujiwara Rakuzan have been designated as Okayama Prefecture Important Intangible Cultural Properties. The annual Bizen-yaki Festival, held on the third Saturday and Sunday of October around Imbe Station, features works by members of the Toyu-kai ceramic artists' association of Bizen City sold at a 20% discount. Three kiln sites in Bizen City — the Imbe Kita Ogama Site, Imbe Minami Ogama Site, and Imbe Nishi Ogama Site — have been designated national historic sites. Bizen ware is featured at Aoyama Square, alongside other Japanese ceramics traditions such as Hagi-yaki, Arita-yaki, Kutani-yaki, and Mino-yaki.

Frequently Asked Questions

What makes Bizen ware different from other Japanese ceramics?

Bizen ware is fired entirely without applied glaze. The clay used — a high-iron-content hiyose clay dug from rice paddy beds — is naturally unreceptive to glazing, and its high shrinkage during firing would cause any applied glaze to peel away. Surface patterns are produced exclusively through kiln effects (yohen) such as ash deposition, straw wrapping, and atmospheric changes within the kiln.

What are the main kiln effects found on Bizen ware?

The principal kiln effects include goma (yellow speckles from vitrified pine ash), hidasuki (scarlet marks from straw wrapping), sangiri (smoked surfaces from ash coverage), botamochi (white spots from obstructed firing), Ao-Bizen (blue-gray surfaces from reduction zones), Kuro-Bizen (a glaze-like black surface from applied iron-rich clay), and Shiro-Bizen (a white surface from low-iron clay fired at high temperatures).

When was Bizen ware designated a Traditional Craft?

Bizen ware was designated a Traditional Craft Product by Japan's Minister of Economy, Trade and Industry on November 1, 1982. It was additionally recognized as part of Japan Heritage on April 29, 2017, as one of the Six Ancient Kilns of Japan.

Who is Kaneshige Toyo and what was his role in Bizen ware's history?

Kaneshige Toyo (1896–1967) was a key figure in the revival of Bizen ware. In the 1930s during the early Shōwa era, he led efforts to return to Momoyama-style ceramics at a time when the tradition had nearly disappeared following Meiji-era modernization. He was subsequently designated a holder of Important Intangible Cultural Property for Bizen-yaki — a status commonly referred to as Living National Treasure. He is also noted for using clay that had been aged for ten years.

How long does a Bizen ware firing take?

Bizen ware firings occur only once or twice a year. Each firing period lasts 10 to 14 days. The temperature begins at approximately 600 degrees Celsius and rises to a peak of 1,200 to 1,300 degrees Celsius by the eighth day. The potter adds firewood to the kiln every 20 minutes throughout this period, day and night. Six days after the firing ends, the flames are extinguished and the finished pieces are removed.
